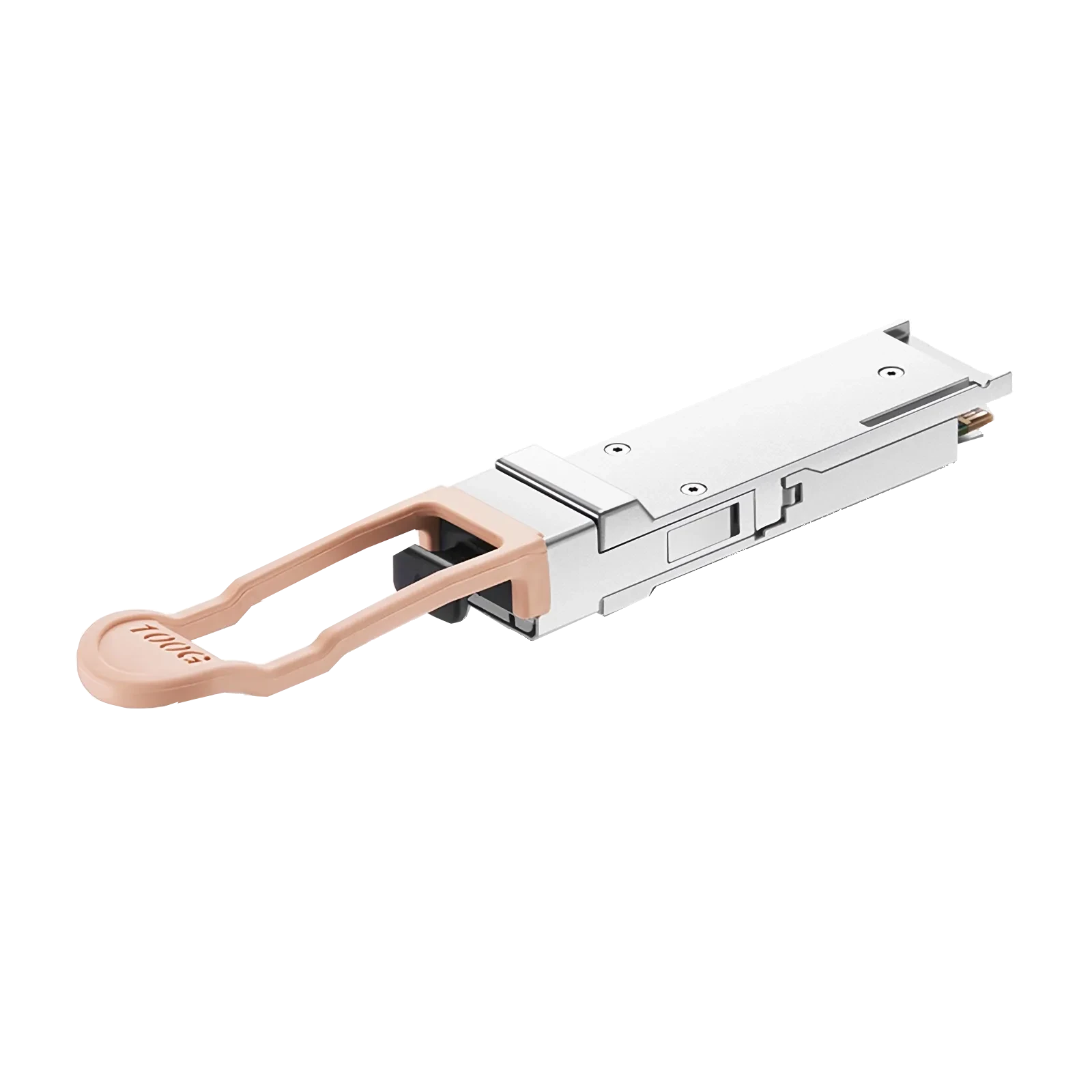

100G QSFP28
100G QSFP28 — the most-deployed 100G form factor across DC interconnect and spine-leaf. SR4 (multimode, 100m), LR4 (10km), CWDM4 (2km), PSM4 (500m), ER4 (40km), ZR4 (80km). All vendor-coded.
Custom built to order
RoHSREACHIEEE 802.3bm
100G QSFP28 — the most-deployed 100G form factor across DC interconnect and spine-leaf. SR4 (multimode, 100m), LR4 (10km), CWDM4 (2km), PSM4 (500m), ER4 (40km), ZR4 (80km). All vendor-coded.
- 100 m to 80 km across SR4/LR4/CWDM4/PSM4/ER4/ZR4
- Pre-coded for NVIDIA Quantum/Spectrum, Cisco Nexus 9000, Arista 7280R, Juniper QFX5220, HPE Aruba
- DDMI with per-lane reporting
- Eye-pattern verified per lane at 25G NRZ
- LC duplex on duplex variants; MTP-12 on PSM4/SR4
- Minimum order
- 1
- Status
- Custom built to order
Fiber Type Legend
| Type | Mode | Best Use | Max Distance (10G) | Standard Jacket Color |
|---|---|---|---|---|
| OS2 | Singlemode | Long-haul / Outdoor | 200 km | Yellow |
| OM3 | Multimode | Data Centers / LAN | 300 m | Aqua |
| OM4 | Multimode | High-speed backbone | 400 m | Aqua / Magenta |
| OM5 | Multimode | SWDM / Future-proof | 440 m | Green |
500 of 500 characters remaining
Select all options to complete
50-XCVR-100G-{optic}-{connector}-{fiberType}-{coding}-{tempRange}Please select: Optic, Connector, Fiber Type, Coding, Temperature Range
Select all required options
// ready_to_quote
Need help spec'ing your 100g qsfp28 build?
Tell us your application and constraints. Our engineering team will configure the right options for your deployment.
