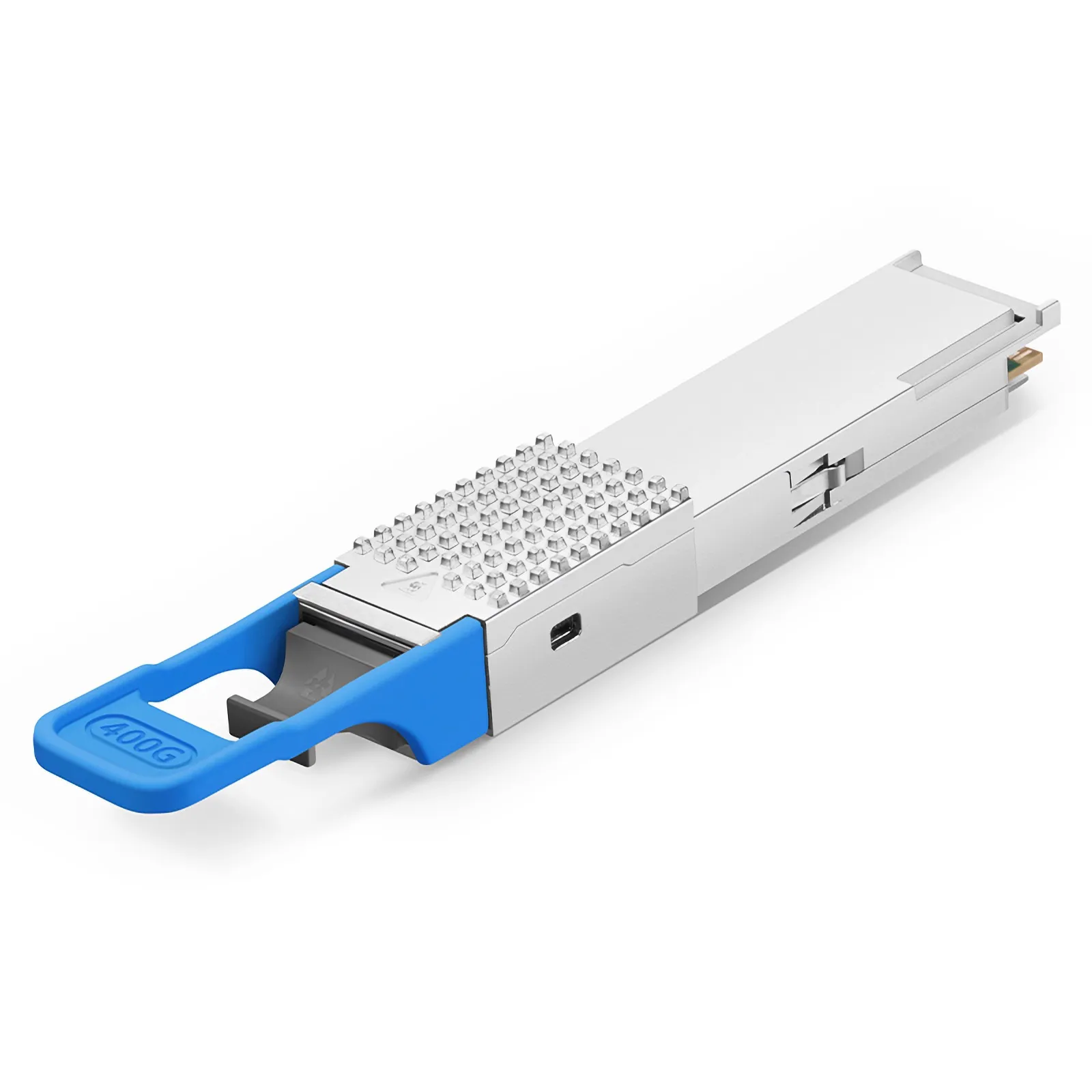

400G QSFP112
QSFP112 — 400G on a 4-lane (112G/lane) PAM4 form factor. Smaller cage than QSFP-DD; the future-forward QSFP variant for vendors that have committed to 4-lane PAM4 line cards.
Custom built to order
RoHSREACHIEEE 802.3ck
QSFP112 — 400G on a 4-lane (112G/lane) PAM4 form factor. Smaller cage than QSFP-DD; the future-forward QSFP variant for vendors that have committed to 4-lane PAM4 line cards.
- 4-lane 112G PAM4 (vs. QSFP-DD's 8× 50G)
- DR / FR / LR variants; up to 10 km reach
- Backwards-compatible cage with QSFP+/28
- Pre-coded for vendors with QSFP112 line cards
- Per-lane eye verification at 112G PAM4
- Minimum order
- 1
- Status
- Custom built to order
Fiber Type Legend
| Type | Mode | Best Use | Max Distance (10G) | Standard Jacket Color |
|---|---|---|---|---|
| OS2 | Singlemode | Long-haul / Outdoor | 200 km | Yellow |
| OM3 | Multimode | Data Centers / LAN | 300 m | Aqua |
| OM4 | Multimode | High-speed backbone | 400 m | Aqua / Magenta |
| OM5 | Multimode | SWDM / Future-proof | 440 m | Green |
500 of 500 characters remaining
Select all options to complete
50-XCVR-400G-Q112-{optic}-{connector}-{fiberType}-{coding}-{tempRange}Please select: Optic, Connector, Fiber Type, Coding, Temperature Range
Select all required options
// ready_to_quote
Need help spec'ing your 400g qsfp112 build?
Tell us your application and constraints. Our engineering team will configure the right options for your deployment.
